This system is designed to protect your house from floods caused
by leaking plumbing.

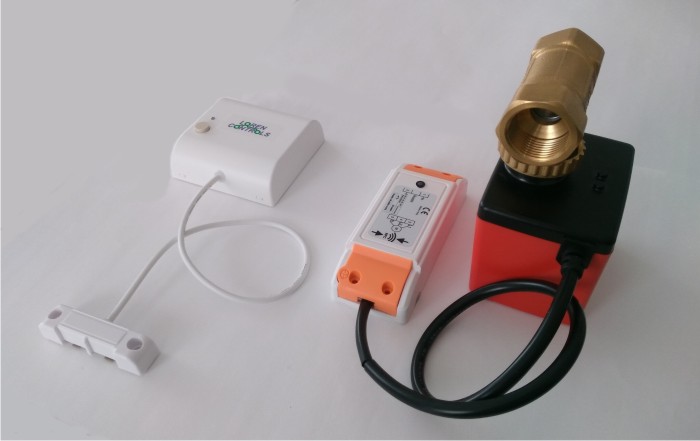

It consist of a flood sensor, a two way electric
valve and a switch (FLOOD ALARM SWITCH) which drive the valve.
In case of wet floor or in case of freezing
temperature, the sensor send a radio signal to the FLOOD ALARM SWITCH
to close the main water supply pipe avoiding flooding.
The FLOOD ALARM SWITCH can manage up to eight sensors
inside a house in a range of 20~50m.
Different behavior options
can
be programmed via the dedicated Android app "LC Param Manager"
downloadable from Google Play store.
The system can be
connected to the local WiFi net by the "WIFI SERVER BRIDGE 433" device
and remote momitored with a smart phone or pc.
.
Frequency: 433MHz
Battery type: 2XAAA
Battery Life: > 5 years
Dimensions: 80X80X25mm
Water trigger level: 1~2mm
Supply: 80-240V~
Current rating: 200mA 240V~
Programming: Via smartphone NFC
Dimensions: 29X45X115mm
Protection: IP54
Supply: 240V~
Type: Quality brass ball valve
Thread: 3/4" (Optionally 1/2" or 1")
Closing time: 15~18s
